Kitchen Design Vaughan | 3D Layout Planning and Material Selection by NKBA Designers

Have you ever tried cooking dinner while someone else opens the fridge, and suddenly you are playing a frustrating game of kitchen Tetris?

That cramped feeling is exactly why expert kitchen design and space planning matters, because a well-designed space is where every successful renovation starts.

Our team of NKBA-credentialed designers handles the planning to turn that cramped space into a kitchen that works for the way you actually cook.

Careful preparation prevents blocked work triangles, short storage, and clashing appliances across homes and condos throughout Vaughan.

What design covers

A complete kitchen design package has several moving parts.

We make sure nothing gets missed before a single wall is opened.

The specific requirements include:

• Layout: work triangle, traffic flow, appliance placement, sightlines, and how the kitchen connects to dining and living spaces.
• 3D rendering: photorealistic views of the finished kitchen so you see the cabinetry, finishes, and lighting before commitment.
• Material specs: cabinet style and finish, counter material, backsplash tile, hardware, lighting, plumbing fixtures.

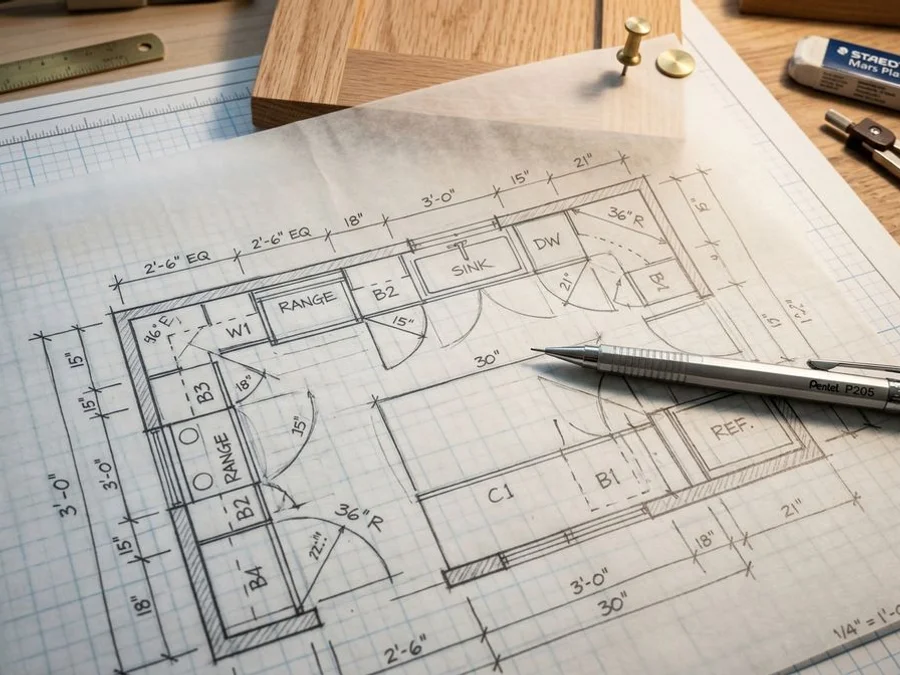

• Construction drawings: plan view, elevations, sections, and details suitable for permit filing where required.
• Permit drawings: when your scope triggers a City of Vaughan building permit, we prepare the drawing set the Building Standards Department needs.

Approvals take time across York Region.

Standard interior alteration permits in Vaughan typically run through municipal review in a couple of weeks, and a clean drawing package keeps that review moving.

Condo owners also need to factor in property management approvals, which often require these same technical drawings.

Layout types we plan most often

Every home has a unique footprint.

We design in five core layout patterns for Vaughan homes and condos.

These layout patterns include:

• Galley: small kitchens and single-cook spaces. Two parallel runs of cabinetry keep the work triangle preserved.
• L-shape: mid-size spaces, the most common layout for Vaughan detached and semi-detached homes. Flexible work areas leave room for a small island.
• U-shape: busy family kitchens with heavy use. Three runs of cabinetry provide maximum storage, often paired with a central island.
• Island: open-concept kitchens built for social cooking and families with a multi-cook flow.
• Peninsula: smaller spaces needing an island feel without taking up the full footprint.

Condos around the Vaughan Metropolitan Centre often have compact galley layouts where vertical storage is critical.

Detached homes in Sonoma Heights and Maple frequently rely on the L-shape, and many open up beautifully once a dividing wall comes out.

NKBA standards, top to bottom

Great design is about math just as much as it is about aesthetics.

We design strictly to NKBA clearance and ergonomics standards.

These guidelines keep your space safe and easy to move through:

• Work Triangle: Legs must be no shorter than 4 feet and no longer than 9 feet.
• Prep Space: A minimum of 36 inches of continuous counter on the prep side of the sink.
• Dishwasher Clearance: The dishwasher placed within 21 inches of the sink.
• Fridge Access: The refrigerator within easy reach of the primary prep zone.

These standards exist because they make everyday cooking functional, and we refuse to deviate from them just because a layout looks pretty on a 2D plan.

Local regulations also shape layout planning.

The Ontario Building Code requires counter receptacles placed so that no point along the wall is more than 35 inches from an outlet.

Integrating those technical requirements into a clean backsplash takes careful planning.

Standalone vs. design-included

Flexibility matters when planning a major home improvement project.

Most clients book design as part of a full renovation, which means the design fee is waived and absorbed into the renovation contract.

Some homeowners prefer to manage the build themselves, so we also offer standalone design packages.

These standalone services suit:

• Owner-builders managing their own renovation projects.
• Homeowners working with a separate general contractor.
• Pre-listing renovation planning before a home sale.

Standalone planning fees generally run $1,500-$5,000 depending on scope, from a basic concept to a full construction-ready package.

For perspective, a complete mid-range kitchen overhaul in Vaughan typically costs between $40,000 and $80,000.

Investing a fraction of that budget into professional planning prevents expensive mistakes during the build.

Material selection

Choosing the right materials is easily half of the design process.

We bring physical samples directly to your in-home consultation.

Reviewing finishes in your actual space is critical, which is why we provide:

• Cabinet door samples in various styles and stains.
• Counter slabs, including popular Caesarstone quartz.
• Backsplash tiles sourced from GTA suppliers such as Olympia Tile.
• Hardware options and accurate paint chips.

This approach lets you make final decisions in your home’s natural light, instead of under harsh showroom bulbs.

We frequently recommend Canadian-made quartz for busy family counters because of its durability through everyday use.

Ready to plan your own kitchen design and space planning project?

Book a free in-home consultation to get started.

We will measure the space, talk through your priorities, and return with concept designs for your review.
